Piston Actuated Valve 100 Series

Fluid Pressure	Max 16 bar
Control Pressure	3~8 bar
Control Fluid	Neutral gas, Air
Actuator Material	40mm, 50mm, 63mm, 90mm, 125mm
Applicable Fluid	Water, Alcohol, Oil, Fuel, Steam, Neutral gas or liquid, Organic solvent, Acid and lye
Fluid Viscosity	Max 600mm ²/s
Fluid Temperature	-10℃~180℃, 25℃~220℃
Ambient Temperature	-10℃~80℃

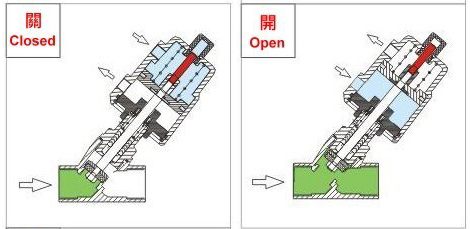

Control Type	Normally closed, Normally open, Double acting
Connection	Threaded (BSP, BSPT, NPT), Welded, Flanged, Tri-clamp

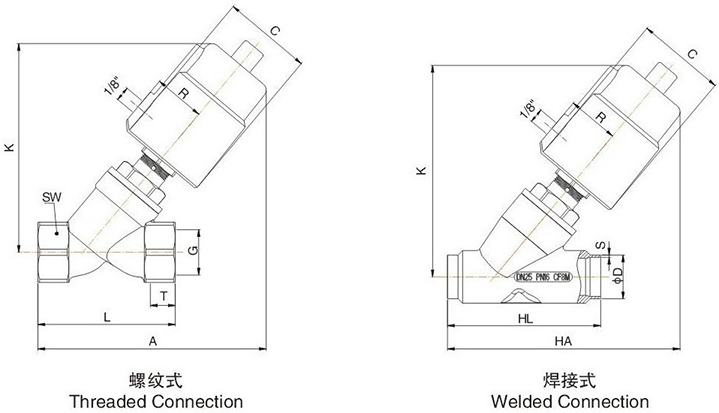

size	actuator (mm)	C	R	K	Threaded connection					Welded connection
					G	T	A	L	SW	HA	HL	DIN11850-2		DIN11850-3		SMS3008
					G	T	A	L	SW	HA	HL	D	S	D	S	HA	HL	D	S
DN10	40	50.5	27	211	3/8"	12	119	68	27	-	-	-	-	-	-	-	-	-	-
DN10	50	60	33	124	3/8"	12	131	68	27	-	-	-	-	-	-	-	-	-	-
DN15	40	50.5	27	111	1/2"	15	119	68	27	118	70	19	1.5	20	2	127	75	18	1
DN15	50	60	33	124	1/2"	15	131	68	27	128	70	19	1.5	20	2	138	75	18	1
DN20	50	60	33	128	3/4"	16	136	75	32	135	82	23	1.5	24	2	145	95	25	1.2
DN25	50	60	33	136	1"	17	145	90	40	150	100	29	1.5	30	2	165	130	32	1.2
	63	75	41	162			169			175						188
	90AL	112	57	210			211			216						230
	90	106	55	211			213			218						232
DN32	63	75	41	174	1"1/4	21	187	116	50	186	125	35	1.5	36	2	200	145	33.7	1.2
	90AL	112	57	220			229			230						242
	90	106	55	223			231			232						245
DN40	63	75	41	175	1"1/2	21	187	116	56	190	130	41	1.5	42	2	210	160	38	1.2
	90AL	112	57	220			230			232						252
	90	106	55	223			231			235						255
DN50	63	75	41	183	2"	22	201	138	69	206	155	53	1.5	54	2	224	175	51	1.2
	90AL	112	57	232			244			247						263
	90	106	55	232			247			250						265
DN65	90AL	112	57	262	2"1/2	26	282	178	85	-	-	-	-	-	-	-	-	-	-
	90	106	55	265			285			-	-	-	-	-	-	-	-	-	-
	125AL	148	74	302			320			-	-	-	-	-	-	-	-	-	-
DN80	125AL	148	74	313	3"	27	372	210	100	-	-	-	-	-	-	-	-	-	-

Single Acting, Normally Closed(NC)-Enter Above Seat
Suitable for condensable media, such as air, steam; and low liquid media.

Size	Thread end	Orifice (mm)	Kv (m3 /h)	Actuator (mm)	△P (bar)	Control Pressure (bar)
DN10	G3/8"	13	3.8	40	0-16	3-4.5
DN10	G3/8"	13	3.8	50	0-16	3-3.5
DN15	G1/2"	13	4.7	40	0-16	3-4.5
DN15	G1/2"	13	4.7	50	0-16	3-3.5
DN20	G3/4"	18	9.5	50	0-16	3-4
DN25	G1"	24	18.1	50	0-16	3-4.5
DN25	G1"	24	18.1	63	0-16	3-3.5

Single Acting, Normally Closed (NC)-Enter Below Seat (NO Water-hammer)
Flow come from below seat, avoid water hammer.

Size	Thread end	Orifice (mm)	Kv (m3/h)	Actuator (mm)	△P (bar)	Control Pressure (bar)
DN10	G3/8"	13	3.8	40	0-11	3
DN10	G3/8"	13	3.8	50	0-14	3
DN15	G1/2"	13	4.7	40	0-11	3
DN15	G1/2"	13	4.7	50	0-14	3
DN20	G3/4"	18	9.5	50	0-14	3
DN25	G1"	24	18.1	50	0-4	3
				63	0-14	4.5
				90	0-16	5
DN32	G1"1/4	31	23.1	63	0-6	4.5
DN32	G1"1/4	31	23.1	90	0-16	5
DN40	G1"1/2	35	32.9	63	0-5	4.5
DN40	G1"1/2	35	32.9	90	0-16	5
DN50	G2"	45	52.8	90	0-10	5
DN65	G2"1/2	61	82.6	90	0-7	5
DN65	G2"1/2	61	82.6	125	0-9.5	6
DN80	G3"	80	127	125	0-6	6

Double Acting, Normally Closed (NC)-Enter Above Seat
Suitable for higher △P; valve could be closed if there is emergency.

Size	Thread end	Orifice (mm)	Kv (m3 /h)	Actuator (mm)	△P (bar)	Control Pressure (bar)
DN10	G3/8"	13	3.8	40	0-16	3-4.5
DN10	G3/8"	13	3.8	50	0-16	3-3.5
DN15	G1/2"	13	4.7	40	0-16	3-4.5
DN15	G1/2"	13	4.7	50	0-16	3-3.5
DN20	G3/4"	18	9.5	50	0-16	3-4
DN25	G1"	24	18.1	50	0-16	3-4.5
DN25	G1"	24	18.1	63	0-16	3-3.5
DN32	G1"1/4	31	23.1	63	0-16	3-5.5
DN32	G1"1/4	31	23.1	90	0-16	2.5-3.5
DN40	G1"1/2	35	32.9	63	0-16	3-6.5
DN40	G1"1/2	35	32.9	90	0-16	2.5-4
DN50	G2"	45	52.8	63	0-10	3-7
DN50	G2"	45	52.8	90	0-16	2.5-4.5
DN65	G2"1/2	61	82.6	90	0-10	2.5-6
DN65	G2"1/2	61	82.6	125	0-16	3-4
DN80	G3"	80	127	125	0-16	3-7

Double Acting, Normally Closed (NC)-Enter Below Seat
Flow come from below seat, avoid water hammer, suitable for higher △P

Size	Thread end	Orifice (mm)	Kv (m3 /h)	Actuator (mm)	△P (bar)	Control Pressure (bar)
DN10	G3/8"	13	3.8	40	0-16	≧3
DN10	G3/8"	13	3.8	50	0-16	≧3
DN15	G1/2"	13	4.7	40	0-16	≧3
DN20	G3/4"	18	9.5	50	0-16	≧3
DN25	G1"	24	18.1	50	0-13	3-5
DN25	G1"	24	18.1	63	0-16	3-4
DN32	G1 1/4"	31	23.1	63	0-16	3-6
DN32	G1 1/4"	31	23.1	90	0-16	2.5-4
DN40	G1 1/2"	35	32.9	63	0-16	3-7
DN40	G1 1/2"	35	32.9	90	0-16	2.5-5
DN50	G2"	45	52.8	63	0-8	3-7
DN50	G2"	45	52.8	90	0-16	2.5-6
DN65	G2 1/2"	61	82.6	90	0-11	2.5-7
DN65	G2 1/2"	61	82.6	125	0-16	3.5-5
DN80	G3"	80	127	125	0-16	3-6.5

Normally Open (NO)-Enter Above Seat
Suitable for long time valve open demand; Taking off silencer, valve could be changed to double acting-NO type.

Size	Thread end	Orifice (mm)	Kv (m3 /h)	Actuator (mm)	△P (bar)	Control Pressure (bar)
DN10	G3/8"	13	3.8	50	0-16	≧3
DN15	G1/2"	13	4.7	50	0-16	≧3
DN20	G3/4"	18	9.5	50	0-12	≧3
DN25	G1"	24	18.1	63	0-16	≧4.5
DN32	G1 1/4"	31	23.1	63	0-14	≧4.5
DN40	G1 1/2"	35	32.9	63	0-14	≧4.5
DN50	G2"	45	52.8	63	0-6	≧4.5

Normally Open (NO)-Enter Below Seat
Suitable for long time valve open demand; avoid water hammer. Taking off silencer, valve could be changed to double acting-NO type.

Size	Thread end	Orifice (mm)	Kv (m3 /h)	Actuator (mm)	△P (bar)	Control Pressure (bar)
DN10	G3/8"	13	3.8	50	0-16	2-4
DN15	G1/2"	13	4.7	50	0-16	2-4
DN20	G3/4"	18	9.5	50	0-16	2-6
DN25	G1"	24	18.1	50	0-13	2-6
DN25	G1"	24	18.1	63	0-16	2.5-5
DN32	G1"1/4	31	23.1	63	0-13	2.5-6
DN40	G1"1	35	32.9	63	0-7	2.5-6
DN50	G2"	45	52.8	63	0-5	2.5-6
DN50	G2"	45	52.8	90	0-12	2.5-6
DN65	G2"1/2	61	82.6	125	0-14	2.5-7
DN80	G3"	80	127	125	0-12	2.5-7

Series	Size		Actuator		Function		Valve Body
100	DN-20	－	50	SS	-	－	G3/4
	DN-10		40		- : Normally Closed		G3/8(DN-10)
	DN-15		50		NO: Normally Open		G1/2(DN-15)
	DN-20		63		D: Double Action		G3/4(DN-20)
	DN-25		90				G1"(DN-25)
	DN-32		125				G1"1/4(DN-32)
	DN-40						G1"1/2(DN-40)
	DN-50						G2"(DN-50)
	DN-65						G2"1/2(DN-65)
	DN-80						G3"(DN-80)

100 Series(Taiwan)
