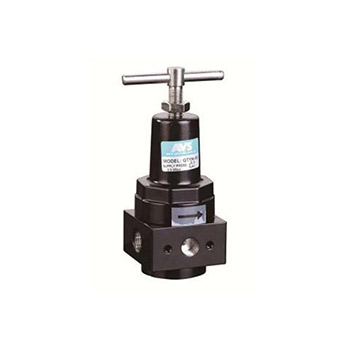

QTYH/ QSLH/ QFRH
Medium Pressure Regulator/ F.R. Unit/ Filter
SHARE
| Model | QTYH-08 | QTYH-10 | QTYH-15 | QTYH-20 | QTYH-25 |
|---|---|---|---|---|---|
| Fluid Operating Fluid | Air | ||||
| Ports Port size | G1/4 | G3/8 | G1/2 | G3/4 | G1 |
| Pressure range Range of Adjustable Pressure | 0.5~25 Bar | ||||
| Max. Input Pressure | 30 Bar | ||||
| Model | QSLH-08 | QSLH-10 | QSLH-15 | QSLH-20 | QSLH-25 |
|---|---|---|---|---|---|
| Operating Fluid | Air | ||||
| Port Size | G1/4 | G3/8 | G1/2 | G3/4 | G1 |
| Filtering Element Roughness | 20µm or 40µm | ||||
| Working of Adjustable Pressure | 1.5~30 Bar | ||||
| Max. Input Pressure | 30 Bar | ||||
| Model | QFRH-08 | QFRH-10 | QFRH-15 | QFRH-20 | QFRH-25 |
|---|---|---|---|---|---|
| Operating Fluid | Air | ||||
| Filtering Element Roughness | G1/4 | G3/8 | G1/2 | G3/4 | G1 |
| Port Size | 20µm or 40µm | ||||
| Range of Adjustable Pressure | 1.5~25 Bar | ||||
| Max. Input Pressure | 30 Bar | ||||
| Series | Port | |
|---|---|---|
| QTYH | - | 15 |
| QTYH-High Pressure Regulator | 08-G1/4" | |
| QSLH-High Pressure Filter | 10-G3/8" | |
| QFRH-High Pressure Filter & Regulator | 15-G1/2" | |
| 20-G3/4" | ||
| 25-G1" |
